The StoreVent crop store building ventilation system extracts warm, moist air from buildings and replaces it with cool fresh air. This avoids condensation and enables buildings to remain closed for security and quality assurance purposes.

StoreVent maximises the efficiency of crop cooling and drying systems and improves the quality of the stored crop by increasing cooling speed, reducing energy consumption and minimising insect infestation.

StoreVent works equally well with all types of crop ventilation and drying systems, including underfloor ducts.

Bird mesh
Built-in back draught shutter
grain pedestals highest airflow
Substantial airflow
Helps aid faster cooling
Martin Lishman StoreVent crop store building ventilation systems are available in various sizes
Various sizes available
Martin Lishman StoreVent crop store building ventilation fans are made from aluminium
Extra strong aluminium construction
Martin Lishman StoreVent crop store building ventilation system uses high airflow fans
StoreVent Belt-Drive Extraction Fans
  • Substantial airflow at low pressures to extract a large amount of air very quickly, with low energy consumption and low sound levels
  • Built-in back draught shutter – opens and closes automatically when fan switches on or off to prevent harsh weather blowing into the building
  • Bird mesh fitted to both sides of the galvanised sheet steel fan housing
  • Automatic control – connection to an automatic fan control system linked to the operation of Pile-Dry Fans allows warm, moist air to be extracted from the building as it is extracted from the grain.
  • Manual control can be used for dust extraction when loading and unloading a store

StoreVent Fixed Blade Intake Louvres

StoreVent fixed blade louvres are specially made for Martin Lishman with extra rain resistance to suit agricultural conditions.

  • Class B category provides 95-98.9% protection against rain ingress, with integral internal drip cill and water ejection system
  • Extra strong aluminium construction with louvre blades screwed into flanged frame and strengthening mullion to rear
  • Bird mesh fitted to inside face
  • Optional powder coat finish and variable control versions available
Martin Lishman StoreVent crop store building ventilation system uses high airflow louvres

Installing StoreVent with Pile-Dry Crop Pedestals and Fans

  • Install intake louvres so that the prevailing wind can enter through them (usually in the gable end above the door). Install extraction fans at the opposite end or side of the building (not in the same wall as the louvres)
  • Take advantage of prevailing winds and the airflow generated by Pile-Dry Fans. Pile-Dry Fans located on Pile-Dry Pedestals should be pointed towards the extraction fan to assist the flow of air across the grain surface. This helps fresh cool air to enter through the louvres and warm wet air to be extracted by the fan.
Installing StoreVent with FloorVent Pedestals and Fans
  • Install intake louvres so that the prevailing wind can enter through them (usually in the gable end above the door). Consider additional locations in the walls of larger stores to ensure total air movement in the store.
  • Use Pile-Dry Fans located on the external FloorVent ducts to act as the warm air extraction system for both the store and the grain and assist the flow of fresh cool air to enter through the louvres.
Martin Lishman StoreVent crop store building ventilation system works well with Floorvent
Full Details and Specifications

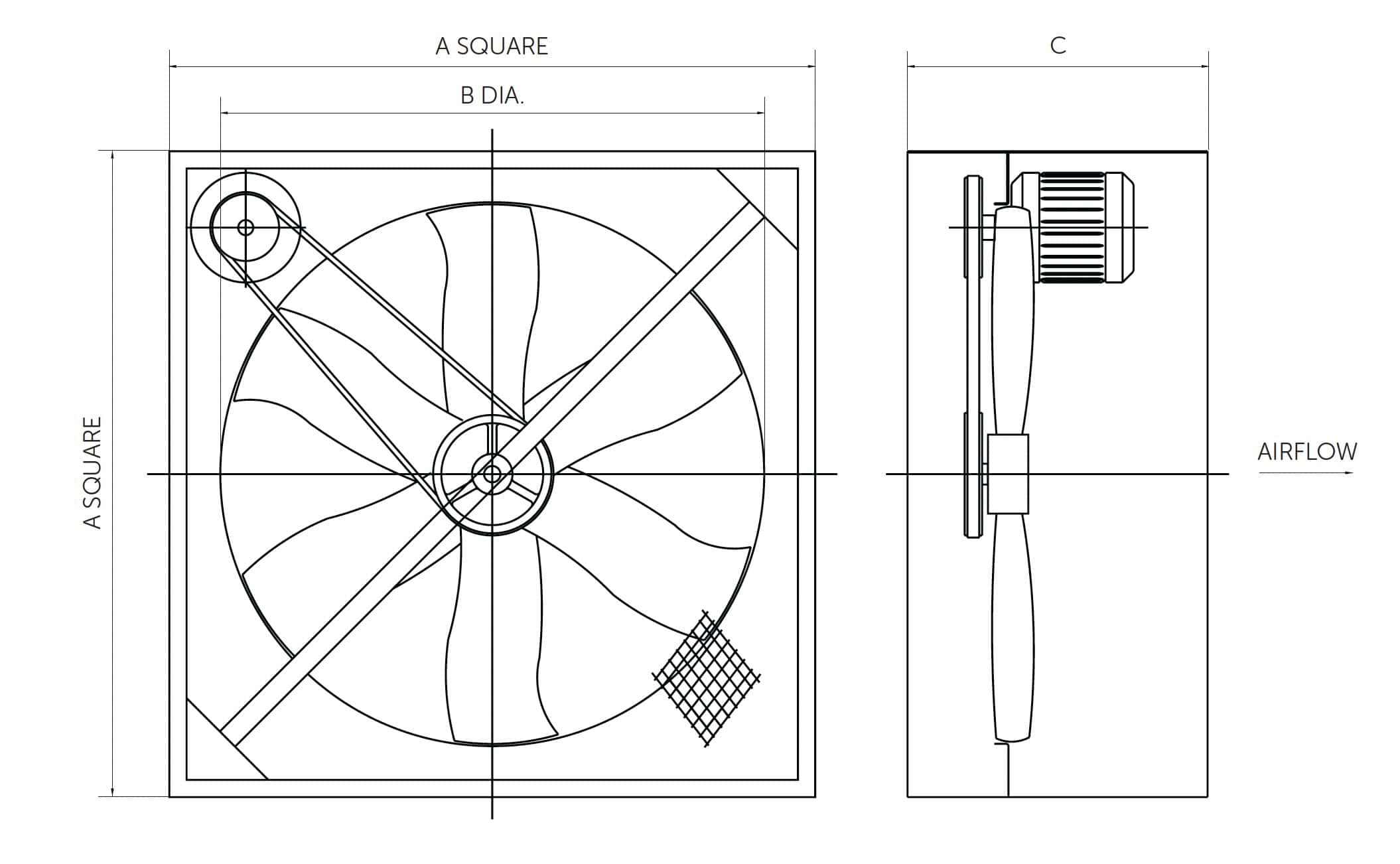

StoreVent Belt Drive Extraction Fans

Fan CodePhaseMax Vol (m3/S)Max Pressure (Pa)VoltsWattsFLC AmpsA (mm)B (mm)Depth (mm)Wt (kg)dB
SV800/1BELTSingle4.6602307504.59608004704458
SV800/3BELTThree4.6604007502.09608004704458
SV1000/1BELTSingle7.11002307505.4115010004705059
SV1000/3BELTThree7.11004007502.6115010004705059
SV1250/1BELTSingle12.18023011007.2138012504707060
SV1250/3BELTThree12.18040011002.9138012504707060

Fans require an individual manual or automatic starter with overload protection

Galvanised steel fan housing with bird proof mesh on both sides, self-cleaning stainless steel impeller and built-in centrifugally operated back-draught shutter that closes automatically when the fan switches off.

StoreVent Fresh Air Intake Louvres

Product CodeWidth (mm)Depth (mm)
SV100010001000
SV110011001100
SV120012001200
SV125012501250
SV150015001500

Measurement refers to the size of the hole in the wall required

Aluminium, Class B (95-98% rain protection), 30mm flanged frame, 38mm pitch fixed blade air intake louvre with rear mullion, drip cill, rear drip tray and bird proof mesh.

Louvres can be supplied powder-coated to order to match most cladding colours.

Moving blade and motorized louvres available on request.

NB: Fans and louvres should be installed by competent installation technicians.
